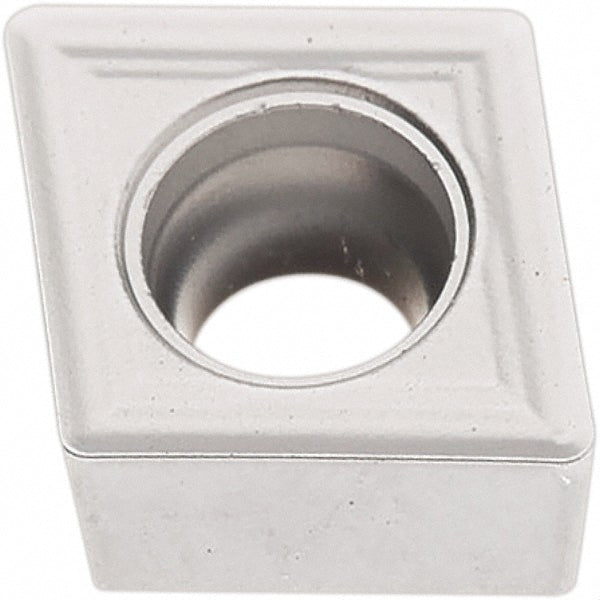

CCMT060204-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02960858

Seco

CCMT060204-M3 Carbide Insert, Grade TP2501, TiCN - Seco 02960858

MFR# 02960858ISO/ANSI# CCMT21.51-M3Series CCMT-M3

$13.06List $16.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960858 is a CCMT060204-M3 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.51-M3
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204-M3
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number02960858
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.2362
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
