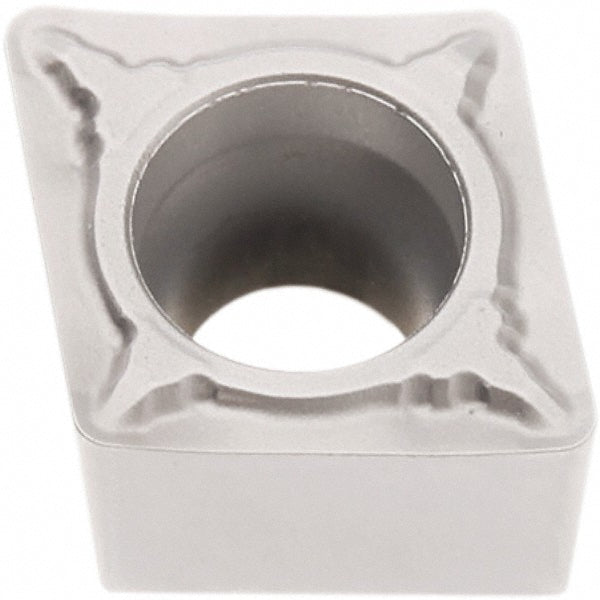

CCMT09T304-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960860

Seco

CCMT09T304-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960860

MFR# 02960860ISO/ANSI# CCMT32.51-F1Series CCMT-F1

$15.15List $19.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960860 is a CCMT09T304-F1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02960860
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.3661
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
