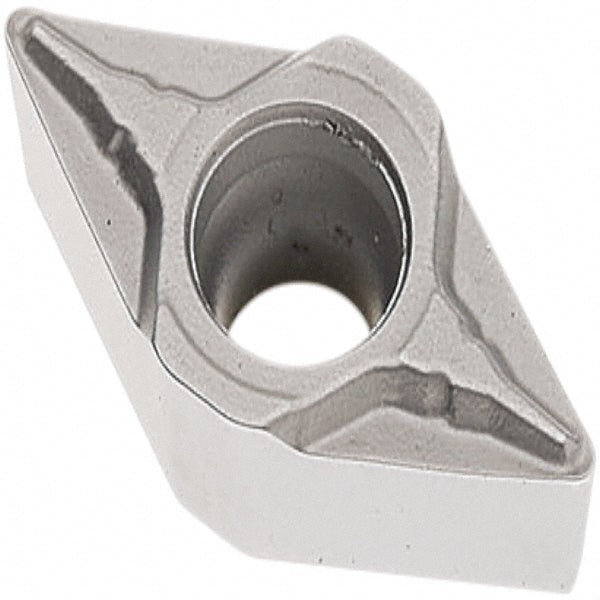

DCMT070202-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960869

Seco

DCMT070202-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960869

MFR# 02960869ISO/ANSI# DCMT070202Series DCMT-F1

$14.90List $19.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960869 is a DCMT070202-F1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeDCMT21.50.5
Ansi size code21.50.5
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1142
Included angle55
Industry standard numberDCMT21.50.5-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6142
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.50.5
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070202-F1
Iso insert codeDCMT070202
Iso size code070202
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number02960869
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.2992
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
