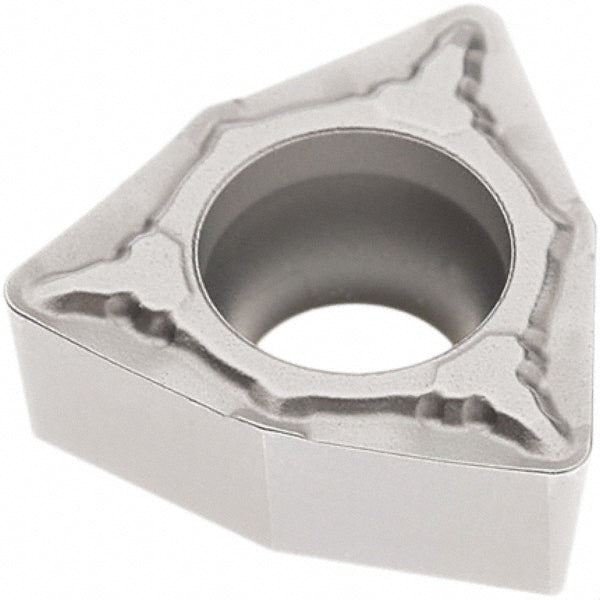

WCMT06T308-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960879

Seco

WCMT06T308-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960879

MFR# 02960879ISO/ANSI# WCMT06T308Series WCMT-F1

$21.12List $27.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960879 is a WCMT06T308-F1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeWCMT32.52
Ansi size code32.52
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1772
Included angle80
Industry standard numberWCMT32.52-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.5142
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code32.52
Insert styleWCMT
Insert thickness in5/32
Iso codeWCMT06T308-F1
Iso insert codeWCMT06T308
Iso size code06T308
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number02960879
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.2516
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
