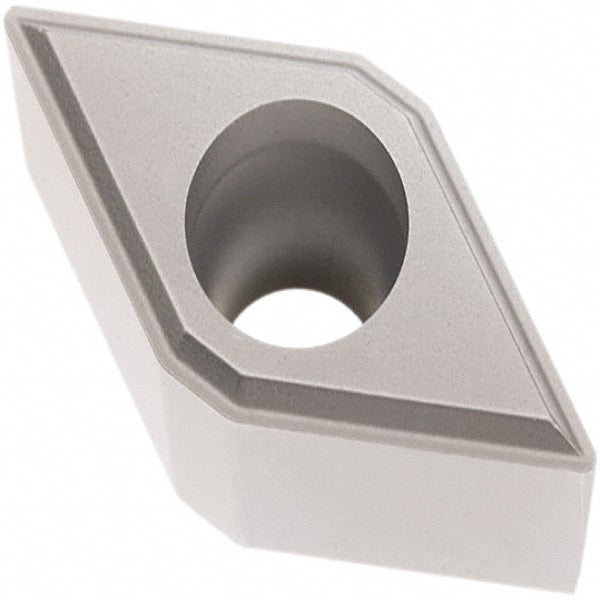

DCMT11T308-FF1 Carbide Insert, Grade TP2501, TiCN - Seco 02960880

Seco

DCMT11T308-FF1 Carbide Insert, Grade TP2501, TiCN - Seco 02960880

MFR# 02960880ISO/ANSI# DCMT11T308Series DCMT-FF1

$16.00List $20.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960880 is a DCMT11T308-FF1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeDCMT32.52
Ansi size code32.52
Chip breakerFF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1772
Included angle55
Industry standard numberDCMT32.52-FF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T308-FF1
Iso insert codeDCMT11T308
Iso size code11T308
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number02960880
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.4252
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
