Seco

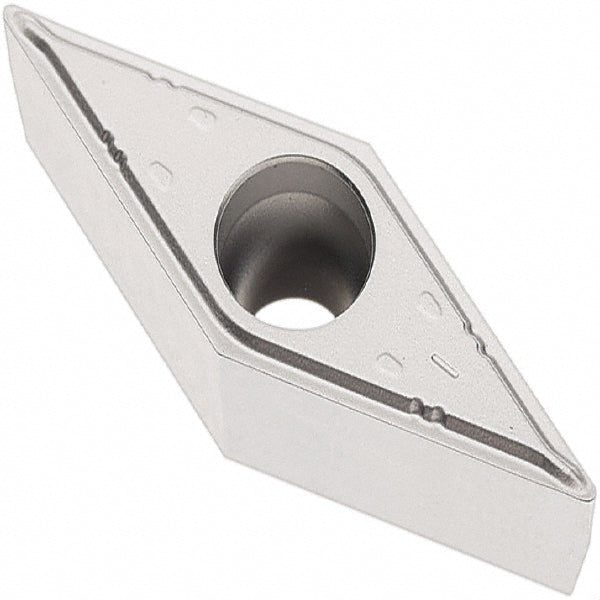

VBMT160404-F1 Carbide Insert, Grade TP1501, TiCN - Seco 02960884
MFR# 02960884ISO/ANSI# VBMT331-F1Series VBMT-F1
$24.60List $31.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960884 is a VBMT160404-F1 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle35degree
Industry standard numberVBMT331-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-F1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960884
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle5
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
