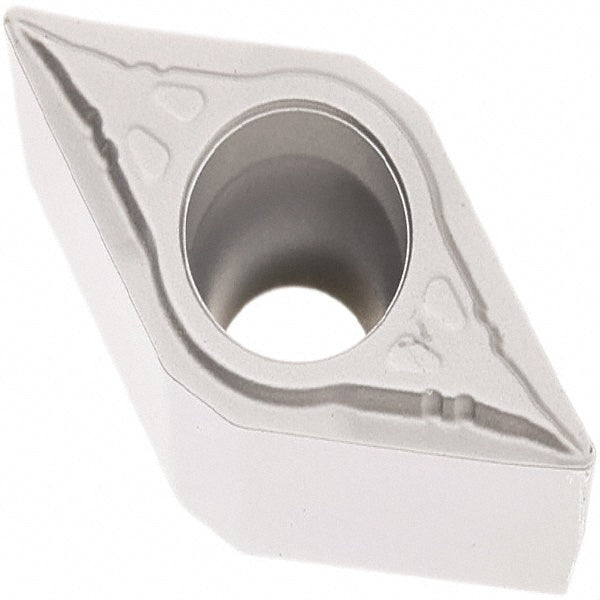

DCMT11T304-F1 Carbide Insert, Grade TP1501, TiCN - Seco 02960886

Seco

DCMT11T304-F1 Carbide Insert, Grade TP1501, TiCN - Seco 02960886

MFR# 02960886ISO/ANSI# DCMT11T304Series DCMT-F1

$17.50List $22.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeTP1501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960886 is a DCMT11T304-F1 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle55
Industry standard numberDCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-F1
Iso insert codeDCMT11T304
Iso size code11T304
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number02960886
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.4449
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
