Seco

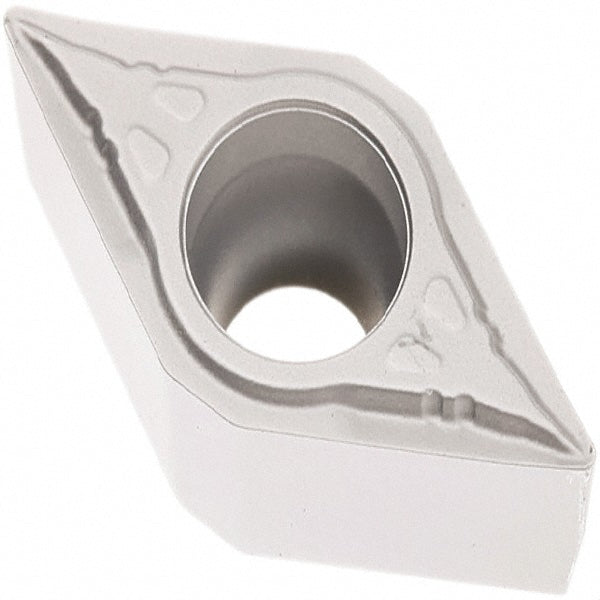

DCMT11T304-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960888
MFR# 02960888ISO/ANSI# DCMT32.51-F1Series DCMT-F1
$17.50List $22.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960888 is a DCMT11T304-F1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-F1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960888
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.4449
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
