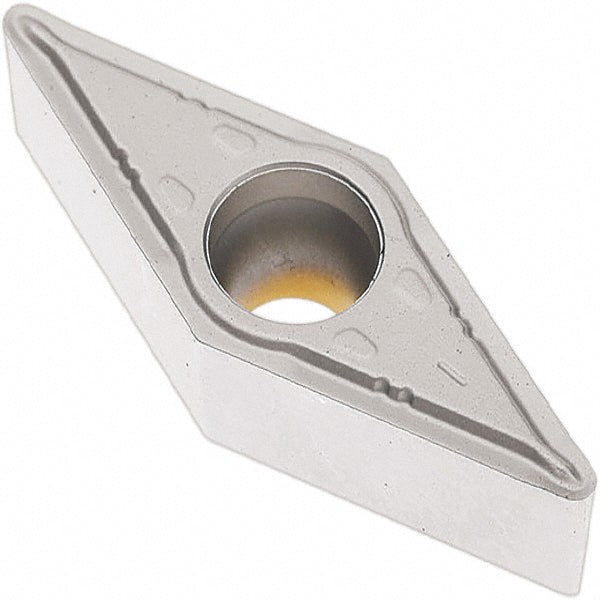

VBMT160408-F1 Carbide Insert, Grade TP1501, TiCN - Seco 02960892

Seco

VBMT160408-F1 Carbide Insert, Grade TP1501, TiCN - Seco 02960892

MFR# 02960892ISO/ANSI# VBMT160408Series VBMT-F1

$24.60List $31.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTP1501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960892 is a VBMT160408-F1 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeVBMT332
Ansi size code332
Chip breakerF1
Chip breaker operationFinishing
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle35
Industry standard numberVBMT332-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408-F1
Iso insert codeVBMT160408
Iso size code160408
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number02960892
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.5748
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle5
Secondary workpiece materialCast Iron; Hard Material
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
