Seco

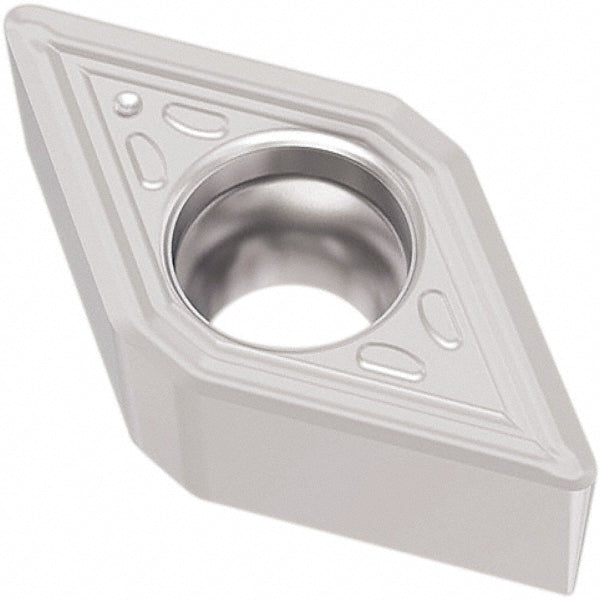

DCMT070208-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960896
MFR# 02960896ISO/ANSI# DCMT21.52-M3Series DCMT-M3
$13.06List $16.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeTP1501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960896 is a DCMT070208-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle55degree
Industry standard numberDCMT21.52-M3
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6142
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.52
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070208-M3
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number02960896
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.2323
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
