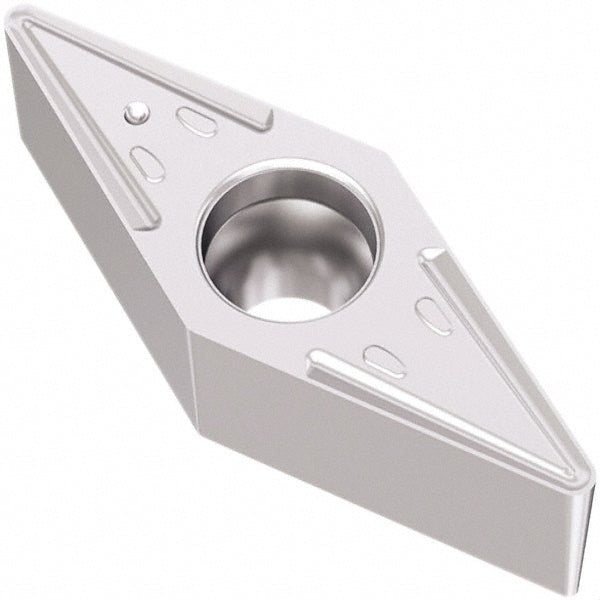

VBMT160404-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960907

Seco

VBMT160404-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960907

MFR# 02960907ISO/ANSI# VBMT331-M3Series VBMT-M3

$24.60List $31.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTP1501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960907 is a VBMT160404-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.

Specifications

Chip breakerM3
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle35degree
Industry standard numberVBMT331-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-M3
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960907
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle5
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
