DCMT11T304-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960910

Seco

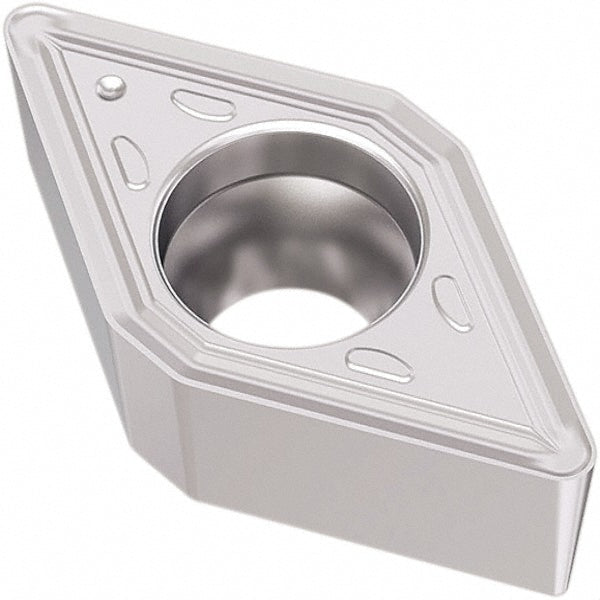

DCMT11T304-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960910

MFR# 02960910ISO/ANSI# DCMT32.51-M3Series DCMT-M3

$17.50List $22.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP1501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960910 is a DCMT11T304-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.

Specifications

Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.51-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-M3
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960910
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.4409
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
