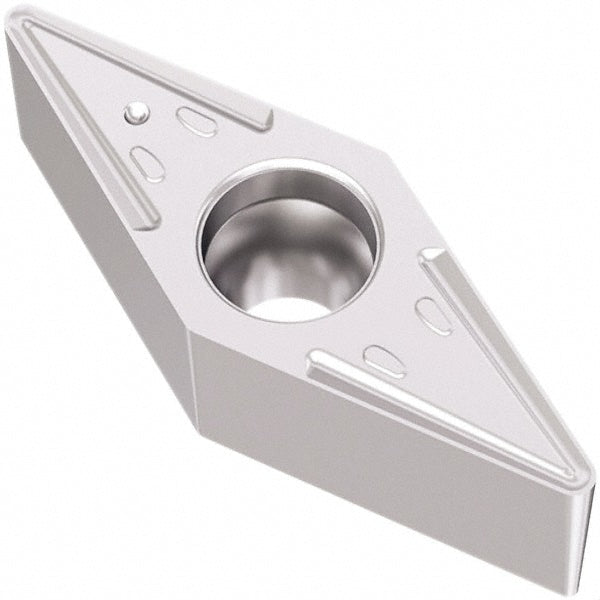

VBMT160408-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960912

Seco

VBMT160408-M3 Carbide Insert, Grade TP1501, TiCN - Seco 02960912

MFR# 02960912ISO/ANSI# VBMT332-M3Series VBMT-M3

$24.60List $31.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTP1501
MaterialCarbide
CoatingTiCN

Description

The Seco 02960912 is a VBMT160408-M3 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.

Specifications

Ansi size code332
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle35
Industry standard numberVBMT332-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408-M3
Iso size code160408
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number02960912
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.5748
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle5
Secondary workpiece materialCast Iron; Hard Material
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
