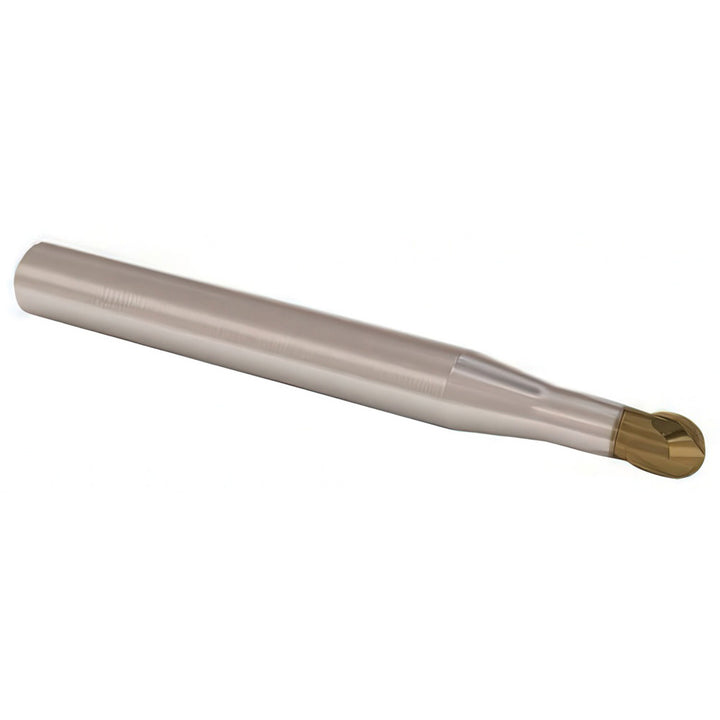

2-Flute Solid Carbide Ball End Mill, HXT - Seco 02970124

Seco

2-Flute Solid Carbide Ball End Mill, HXT - Seco 02970124

MFR# 02970124Cat# JH112020G3B.0Z2-HXTSeries JH112

$130.05List $166.79 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingHXT

Description

The Seco 02970124 is a 2-flute Solid Carbide (Micrograin) ball end mill with a HXT finish for longer tool life. Suited for cast iron, hard material. Series JH112.

Specifications

ChipbreakerNo
Coating finishHXT
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle28
Helix styleMedium
Length of cut (mm)2.00mm
Length typeExtended
Manufacturers catalog numberJH112020G3B.0Z2-HXT
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter (mm)2.00mm
Mill diameter tolerance0.01/0.00 mm
Neck diameter (mm)1.90
Neck length (mm)2.00
Nose radius (mm)1.00
Number of flutes2
Overall length (mm)60.00mm
Primary workpiece materialCast Iron; Hard Material
Reach length0.1575
Shank diameter (mm)6.00mm
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
