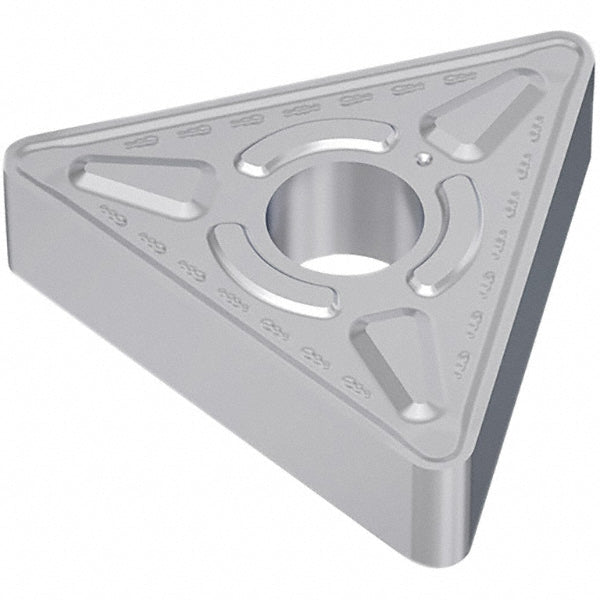

TNMG220408-M6 Carbide Insert, Grade TP1501, TiCN - Seco 02975079

Seco

TNMG220408-M6 Carbide Insert, Grade TP1501, TiCN - Seco 02975079

MFR# 02975079ISO/ANSI# TNMG432-M6Series TNMG-M6

$23.23List $29.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTP1501
MaterialCarbide
CoatingTiCN

Description

The Seco 02975079 is a TNMG220408-M6 carbide indexable insert, grade TP1501, TiCN coated. Suited for steel.

Specifications

Chip breakerM6
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMG432-M6
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-M6
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number02975079
Manufacturer gradeTP1501
Material gradeP10; P20
Maximum depth of cut0.7874
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
