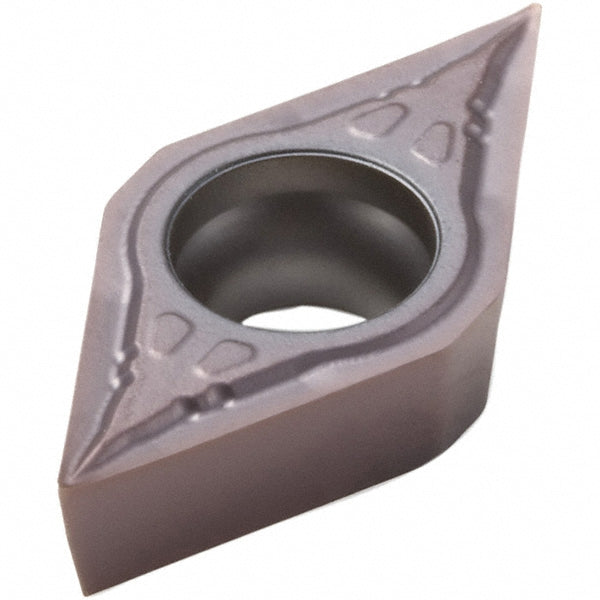

DCMT11T308-F1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02984742

Seco

DCMT11T308-F1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02984742

MFR# 02984742ISO/ANSI# DCMT11T308Series DCMT-F1

$18.02List $23.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeTH1000
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 02984742 is a DCMT11T308-F1 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.

Specifications

Ansi insert codeDCMT32.52
Ansi size code32.52
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle55
Industry standard numberDCMT32.52-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T308-F1
Iso insert codeDCMT11T308
Iso size code11T308
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number02984742
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.4252
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
