Seco

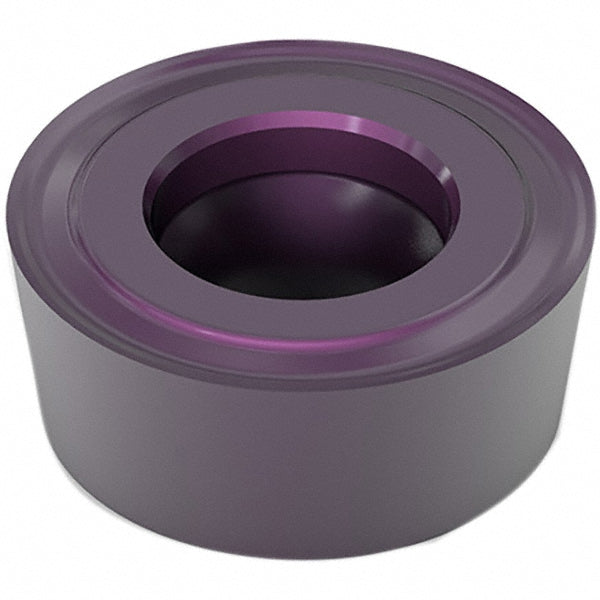

RCMT0803M0-F1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02998633
MFR# 02998633ISO/ANSI# RCMT0803M0-F1Series RCMT-F1
$13.31List $17.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeTH1000
MaterialCarbide
CoatingTiAlSiN
Description
The Seco 02998633 is a RCMT0803M0-F1 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.1575
Cutting edge styleSharp
Full radiusYes
Hole diameter0.1378
Included angle360degree
Industry standard numberRCMT0803M0-F1
Inscribed circle0.3150
Insert handNeutral
Insert holding methodScrew
Insert length0.3150
Insert materialCarbide
Insert shapeRound
Insert size code0803M0
Insert styleRCMT
Insert thickness in1/8
Iso codeRCMT0803M0-F1
Lead angle360degree
Length range0.3000 - 0.4000
Manufacturers catalog number02998633
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.1575
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width0.3150in
Wiper edgeNo
