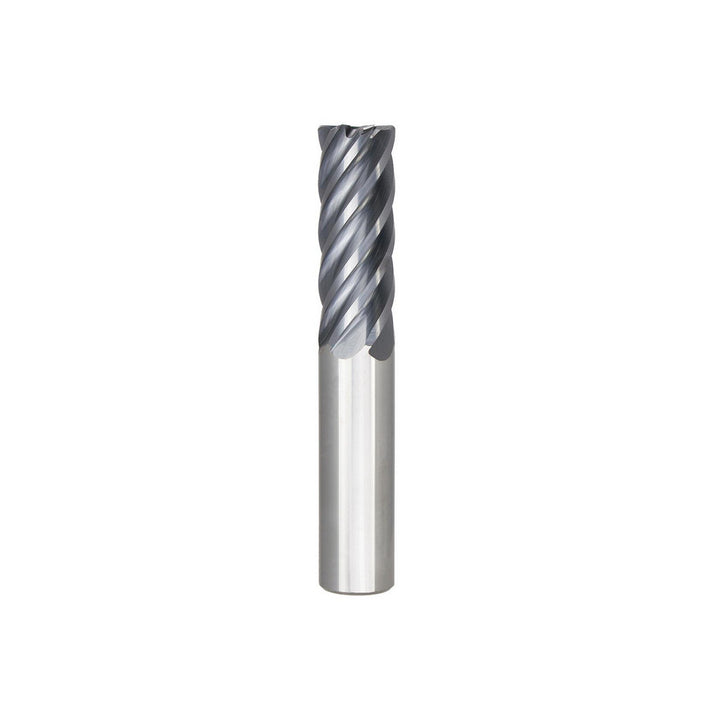

5/8" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03007655

Seco

5/8" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03007655

MFR# 03007655Series S638R

$311.05List $392.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The Seco 03007655 is a 5/8 6-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-5/8 length of cut, 3-1/2 overall length. Series S638R.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0600
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-5/8
Length typeStub
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes6
Overall length in3-1/2
Overall length tolerance-0.0600/0.0600 in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
