Seco

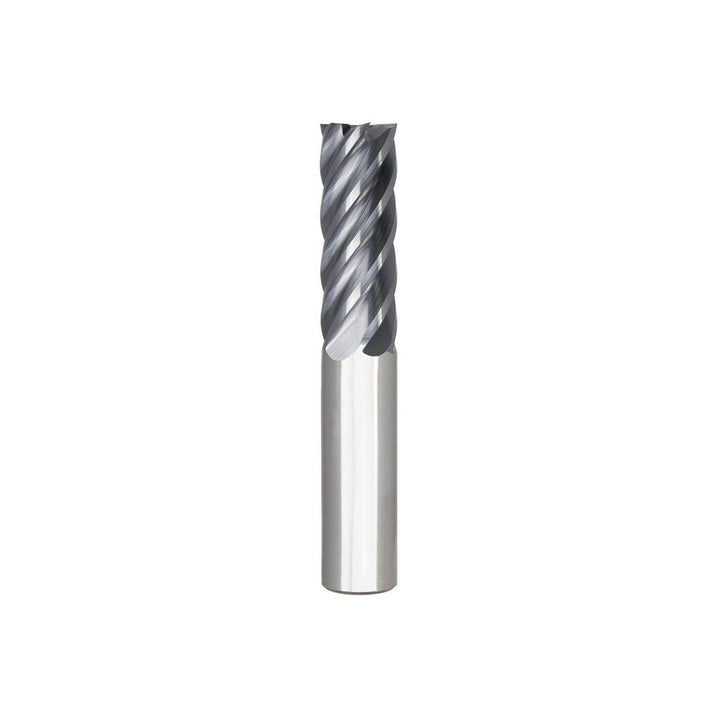

1.0000" 6-Flute Solid Carbide Single End Mill, AlTiN - Seco 03007664

MFR# 03007664Series S638

$495.89List $636.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 03007664 is a 1.0000 6-flute Solid Carbide (Micrograin) single end mill with a AlTiN finish for longer tool life. 2 length of cut. Series S638.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

End typeSingle

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in2

Length typeStandard

Material gradeMicrograin

Mill diameter1.0000

Mill diameter frac in1

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes6

Overall length tolerance+0.060/-0.060 in

Shank diameter in1

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
