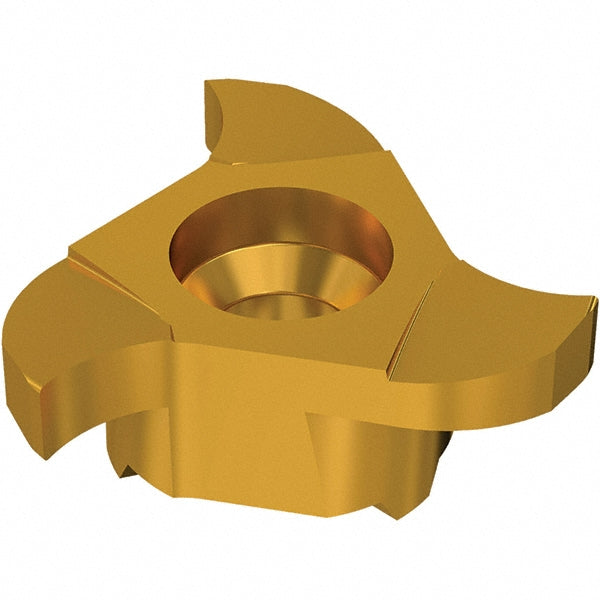

Carbide Insert, Grade F32M, TiAlN - Seco 03041919

Seco

Carbide Insert, Grade F32M, TiAlN - Seco 03041919

MFR# 03041919Series R335.14

$75.54List $93.63 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeF32M
CoatingTiAlN

Description

The Seco 03041919 is a carbide indexable insert, grade F32M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerM02
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0080
Cutting diameter0.6970
Cutting width0.1180in
Functional length0.2260
Included angle degree90
Insert handRight Hand
Insert size177300.09Z3
Lead angle90
Length of cut0.1380in
Manufacturers catalog number03041919
Manufacturer gradeF32M
Material gradeP30; P40; M10; M20; M30; K20; K30; N10; N20; S10; S20; K20; K30
Maximum depth of cut0.1380
Milling tip full descriptionR335.14-177300.09Z3-M02
Milling tip styleR335.14
Milling tip typeT-Slot
Number of flutes3
Overall length0.2260in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
