Seco

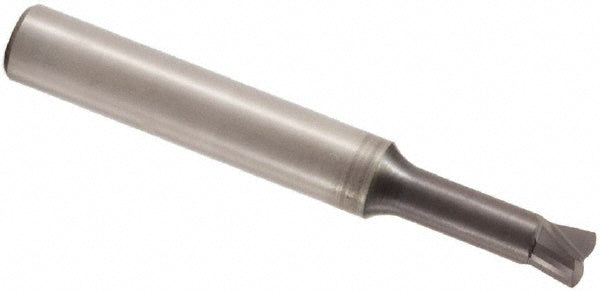

1/16" 2-Flute Solid Carbide High-Feed End Mill, AlTiN - Seco 03043576

MFR# 03043576Series SN200R

$77.97List $100.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes2

Description

The Seco 03043576 is a 1/16 2-flute Solid Carbide (Micrograin) high-feed end mill with a AlTiN finish for longer tool life. 0.0040 length of cut, 2 overall length. Series SN200R.

Specifications

CentercuttingNo

ChipbreakerNo

Cutting directionRight Hand

Extended reachYes

Finish coatingAlTiN

Flute directionRight Hand

Flute typeStraight

Helix angle0

Length of cut in0.0040

Length typeShort

MaterialSolid Carbide

Material gradeMicrograin

Mill diameter in1/16

Neck diameter0.0550

Number of flutes2

Overall length in2

Program radius0.0074

Reach length in5/16

Shank diameter in1/4

Shank typeCylindrical

Single or double endSingle

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
