Seco

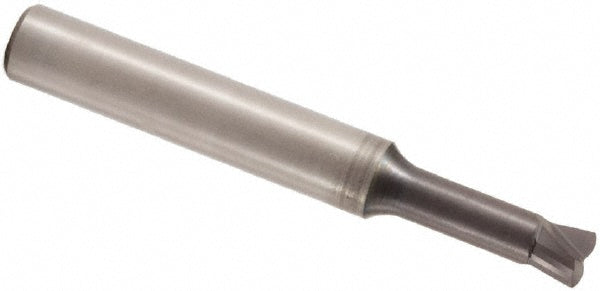

1/4" 2-Flute Solid Carbide High-Feed End Mill, AlTiN - Seco 03043598

MFR# 03043598Series SN200R

$170.75List $219.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

Description

The Seco 03043598 is a 1/4 2-flute Solid Carbide (Micrograin) high-feed end mill with a AlTiN finish for longer tool life. 0.0140 length of cut, 3-1/2 overall length. Series SN200R.

Specifications

CentercuttingNo

ChipbreakerNo

Cutting directionRight Hand

Extended reachYes

Finish coatingAlTiN

Flute directionRight Hand

Flute typeStraight

Helix angle0

Length of cut in0.0140

Length typeStandard

MaterialSolid Carbide

Material gradeMicrograin

Mill diameter in1/4

Neck diameter0.2180

Number of flutes2

Overall length in3-1/2

Program radius0.0322

Reach length in1-3/4

Shank diameter in1/4

Shank typeCylindrical

Single or double endSingle
