Seco

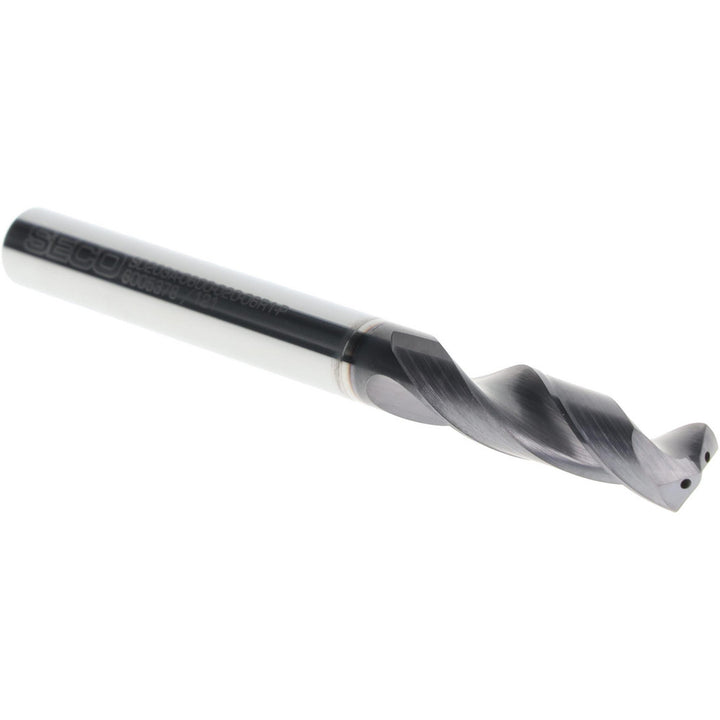

0.2362" Solid Carbide Screw Machine Drill Bit, 140° point - Seco 03045961
MFR# 03045961Series SD203A
$180.64List $220.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 03045961 is a 0.2362" Solid Carbide Screw Machine drill bit, 140° point. Suited for steel. Series SD203A.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.2362
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)1.10
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeSpiral
Maximum drilling depth (mm)20.00
Number of flutes2
Overall length2.5984
Point typeConical
Primary workpiece materialSteel
Shank diameter0.2362
Shank length1.4173
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
