Seco

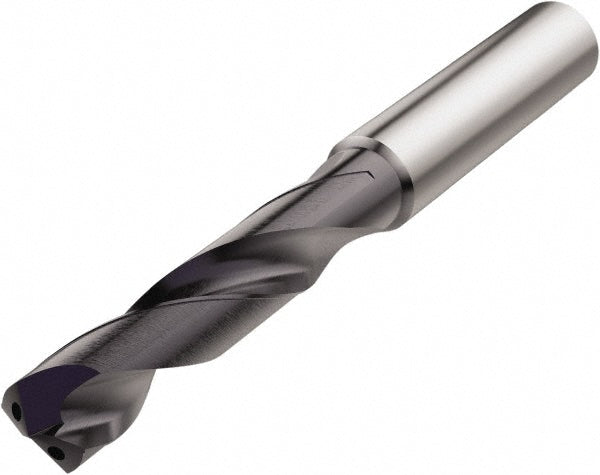

0.3465" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 03045990
MFR# 03045990Series SD203A
$193.64List $240.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Seco 03045990 is a 0.3465" Solid Carbide drill bit with a TiAlN finish, 140° point. Series SD203A.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.3465
Drill bit size range0.3000 to 0.3500
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)47.00
Flute typeRegular Spiral
Maximum drilling depth (mm)35.00
Number of flutes2
Overall length3.5039
Point typeCone Relief
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
