Seco

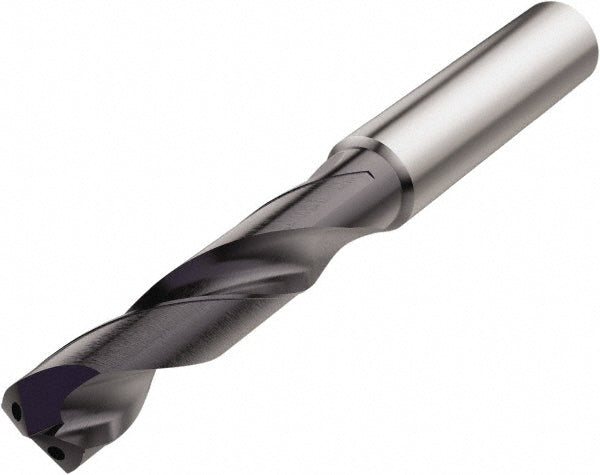

0.4331" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Seco 03046010
MFR# 03046010Series SD203A
$354.72List $432.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Seco 03046010 is a 0.4331" Solid Carbide Screw Machine drill bit with a TiAlN finish, 140° point. Suited for steel. Series SD203A.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.4331
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)2.00
Flute by diameter ratio3xD
Flute length (mm)55.00
Flute typeRegular Spiral
Maximum drilling depth (mm)40.00
Number of flutes2
Overall length4.0157
Point typeCone Relief
Primary workpiece materialSteel
Shank diameter0.4724
Shank length1.7717
Shank typeStraight
Spiral typeRegular
StandardsDIN
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
