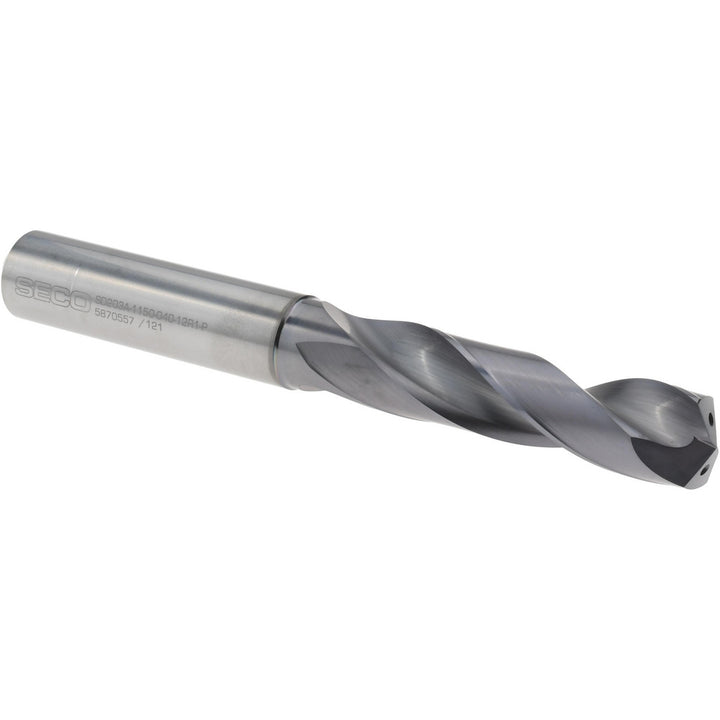

0.4528" Solid Carbide Screw Machine Drill Bit, 140° point - Seco 03046015
MFR# 03046015Series SD203A
$269.48List $334.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 03046015 is a 0.4528" Solid Carbide Screw Machine drill bit, 140° point. Suited for steel. Series SD203A.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.4528
Drill bit size range0.4500 to 0.5000
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)2.10
Flute by diameter ratio3xD
Flute length (mm)55.00
Flute typeSpiral
Maximum drilling depth (mm)40.00
Number of flutes2
Overall length4.0157
Point typeConical
Primary workpiece materialSteel
Shank diameter0.4724
Shank length1.7717
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
