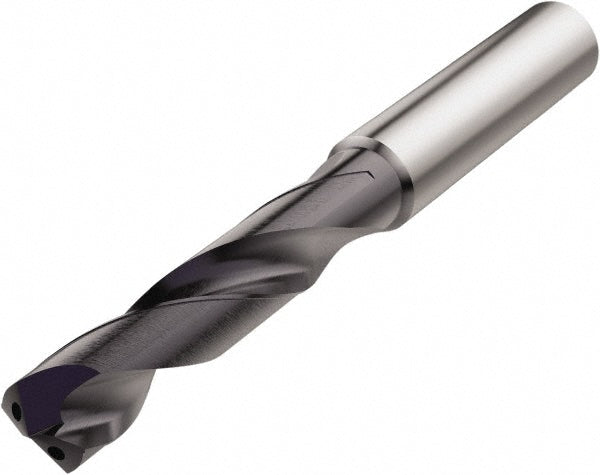

0.5118" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Seco 03046030
MFR# 03046030Series SD203A
$511.54List $623.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Seco 03046030 is a 0.5118" Solid Carbide Screw Machine drill bit with a TiAlN finish, 140° point. Suited for steel. Series SD203A.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.5118
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)2.40
Flute by diameter ratio3xD
Flute length (mm)60.00
Flute typeRegular Spiral
Maximum drilling depth1.6930
Number of flutes2
Overall length4.2126
Point typeCone Relief
Primary workpiece materialSteel
Shank diameter0.5512
Shank length1.7720
Shank typeStraight
Spiral typeRegular
StandardsDIN
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
