0.3152" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 03046200

Seco

0.3152" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 03046200

MFR# 03046200Series SD205A

$193.64List $240.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

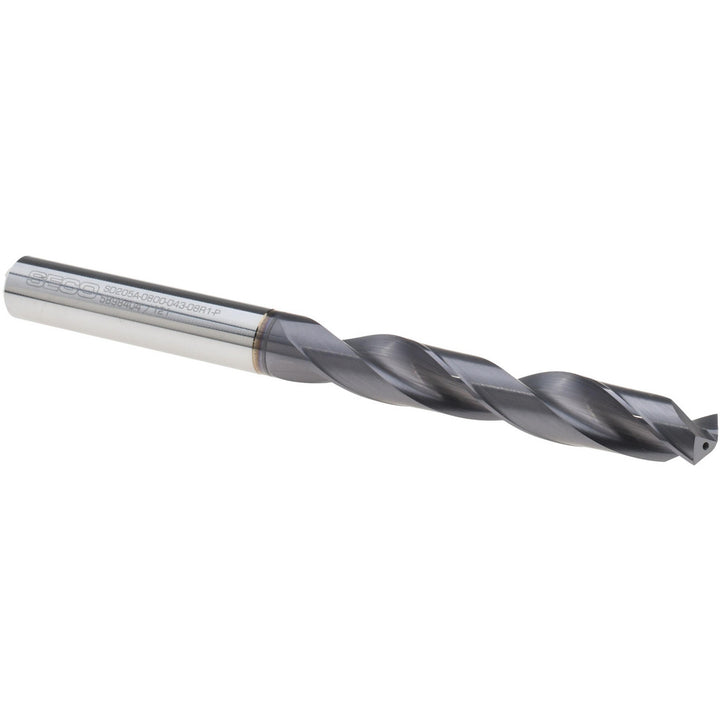

The Seco 03046200 is a 0.3152" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SD205A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.3152
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length0.0575
Flute by diameter ratio7xD
Flute length2.0882
Flute typeSpiral
Maximum drilling depth2.0882
Number of flats0
Number of flutes2
Overall length3.5854
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter0.3152
Shank length1.4184
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceHigh Performance
