Seco

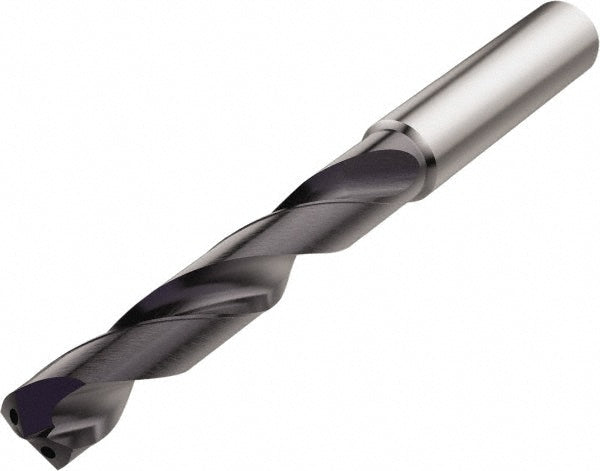

11/32" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 03046341
MFR# 03046341Series SD205A
$234.78List $291.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
CoatingTiAlN
Description
The Seco 03046341 is a 11/32" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SD205A.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length0.0626
Flute by diameter ratio6xD
Flute length2.4016
Flute typeSpiral
Maximum drilling depth2.4016
Number of flats0
Number of flutes2
Overall length4.0551
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter0.3937
Shank length1.5748in
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
