Seco

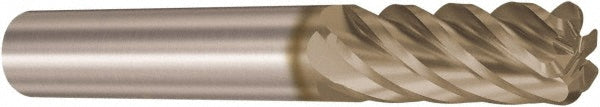

0.2362" 6-Flute Solid Carbide Corner Radius End Mill, HXT - Seco 03060294

MFR# 03060294Series JS720

$76.32List $94.60 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingHXT

Description

The Seco 03060294 is a 0.2362 6-flute Solid Carbide (Submicron) corner radius end mill with a HXT finish for longer tool life. Suited for stainless steel, high temperature alloy. Series JS720.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishHXT

Coolant throughNo

Corner radius0.0394

Corner radius tolerance-0.02 to 0.02 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut0.5000

Length typeShort

Material applicationStainless Steel; Superalloy

Material gradeSubmicron

Material removal typeRoughing

Mill diameter0.2362

Mill diameter tolerance-0.02 to -0.03 mm

Number of flutes6

Overall length (mm)57.00

Primary workpiece materialStainless Steel; High Temperature Alloy

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
