Seco

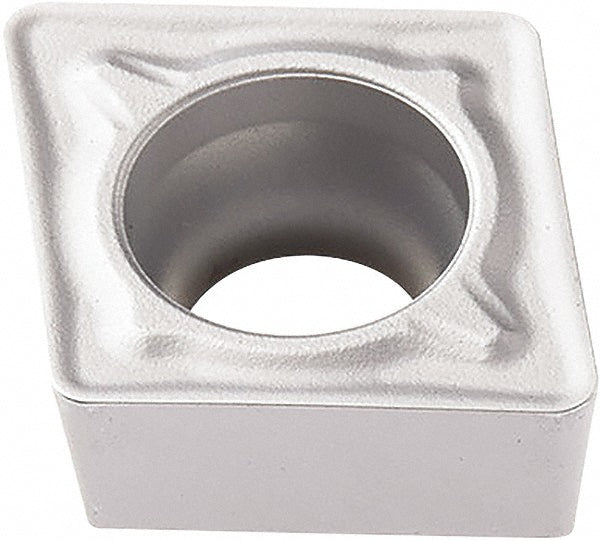

CCMT120408-M5 Carbide Insert, Grade TK0501, TiCN - Seco 03062543
MFR# 03062543ISO/ANSI# CCMT120408Series CCMT-M5
$25.97
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTK0501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062543 is a CCMT120408-M5 carbide indexable insert, grade TK0501, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeCCMT432
Ansi size code432
Chip breakerM5
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2205
Included angle80
Industry standard numberCCMT432-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408-M5
Iso insert codeCCMT120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03062543
Manufacturer gradeTK0501
Material gradeK05; K10; K15
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialHard Material
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
