Seco

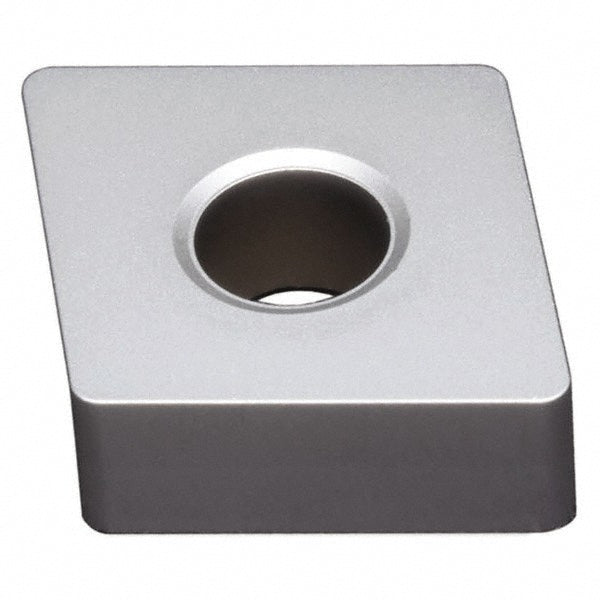

CNMA160612 Carbide Insert, Grade TK0501, TiCN - Seco 03062545
MFR# 03062545ISO/ANSI# CNMA543Series CNMA-Flat Top
$36.85List $46.43
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeTK0501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062545 is a CNMA160612 carbide indexable insert, grade TK0501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80
Industry standard numberCNMA543
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6339
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA160612
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number03062545
Manufacturer gradeTK0501
Material gradeK05; K10; K15
Maximum depth of cut0.5866
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
