Seco

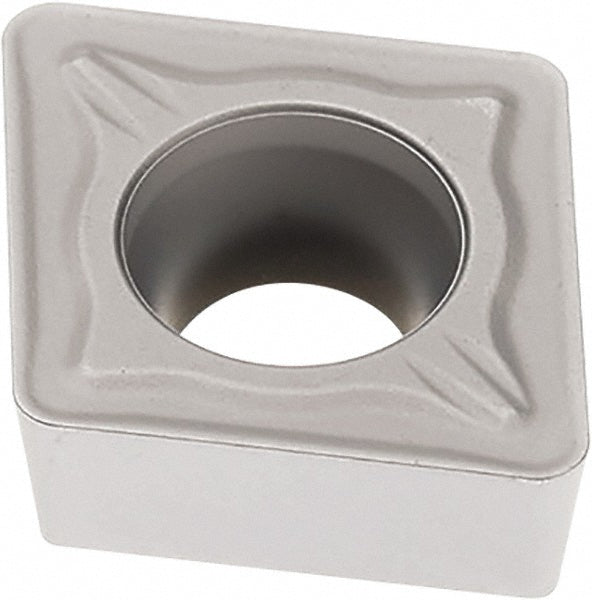

CCMT120412-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03062627
MFR# 03062627ISO/ANSI# CCMT433-M5Series CCMT-M5
$19.28List $24.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062627 is a CCMT120412-M5 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerM5
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2205
Included angle80
Industry standard numberCCMT433-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120412-M5
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03062627
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.4606
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
