Seco

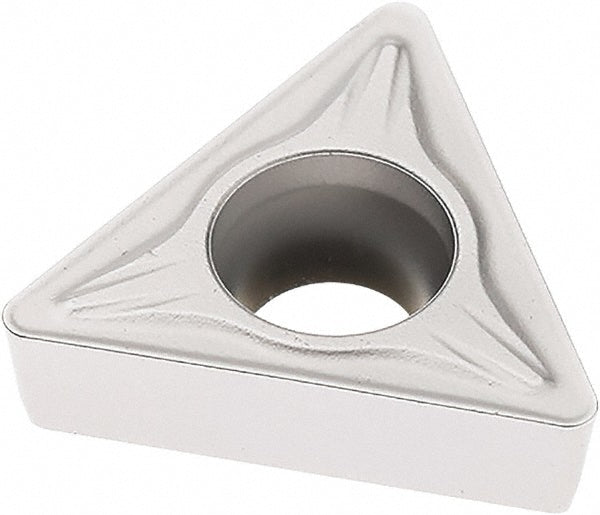

TCMT16T312-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03062631
MFR# 03062631ISO/ANSI# TCMT32.53Series TCMT-Flat Top
$18.60List $23.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062631 is a TCMT16T312-M5 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1772
Included angle60degree
Industry standard numberTCMT32.53
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code32.53
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T312-M5
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number03062631
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.5354
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
