Seco

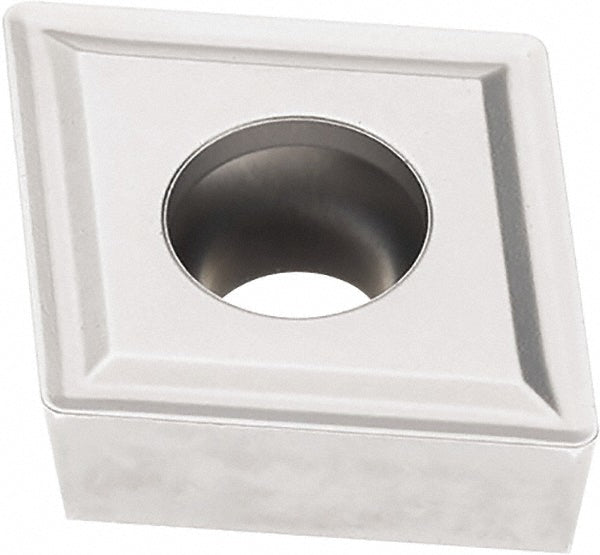

CCMT160508-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062761
MFR# 03062761ISO/ANSI# CCMT53.52-M3Series CCMT-M3
$33.59List $43.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062761 is a CCMT160508-M3 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2205
Included angle80degree
Industry standard numberCCMT53.52-M3
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6339
Insert materialCarbide
Insert shapeDiamond 80
Insert size code53.52
Insert styleCCMT
Insert thickness in7/32
Iso codeCCMT160508-M3
Lead angle80degree
Length range0.6000 - 0.6500
Manufacturers catalog number03062761
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.6024
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
