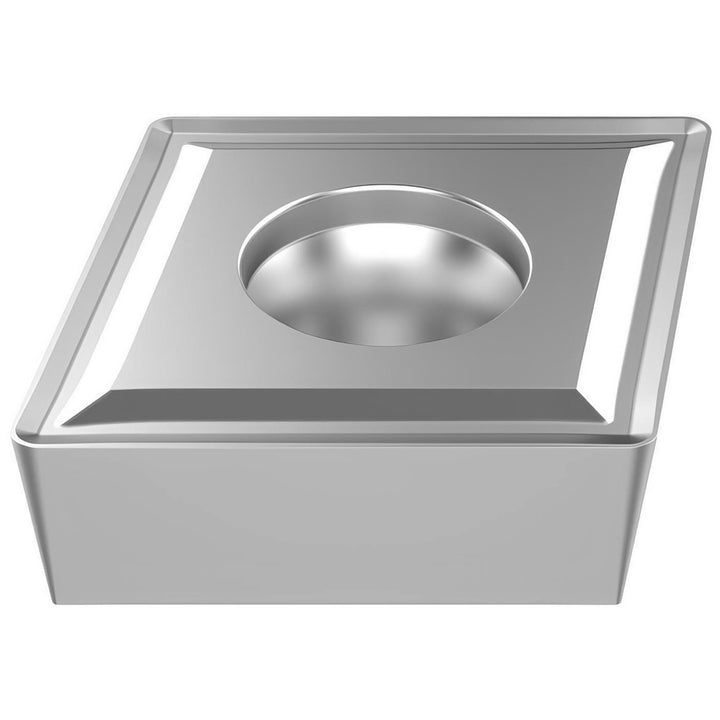

CCMT160512-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062762

Seco

CCMT160512-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062762

MFR# 03062762ISO/ANSI# CCMT160512Series CCMT-M3

$30.57List $39.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03062762 is a CCMT160512-M3 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeCCMT53.53
Ansi size code53.53
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2205
Included angle80
Industry standard numberCCMT53.53-M3
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code53.53
Insert styleCCMT
Insert thickness in7/32
Iso codeCCMT160512-M3
Iso insert codeCCMT160512
Iso size code160512
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number03062762
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.5866
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
