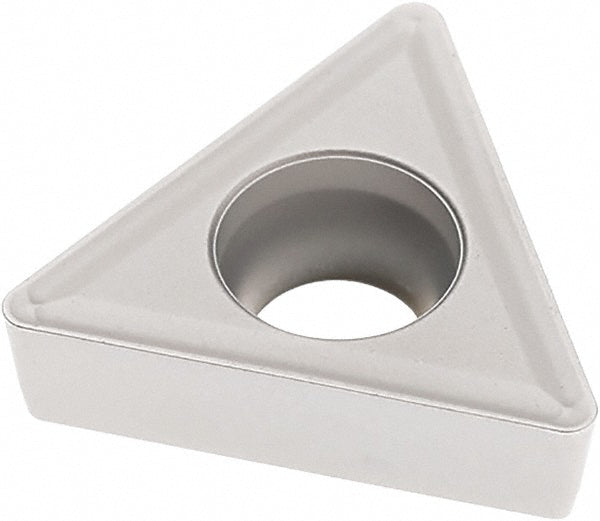

TCMT16T304-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062769
MFR# 03062769ISO/ANSI# TCMT32.51-M3Series TCMT-M3
$16.93List $21.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062769 is a TCMT16T304-M3 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle60degree
Industry standard numberTCMT32.51-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304-M3
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number03062769
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.6102
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
