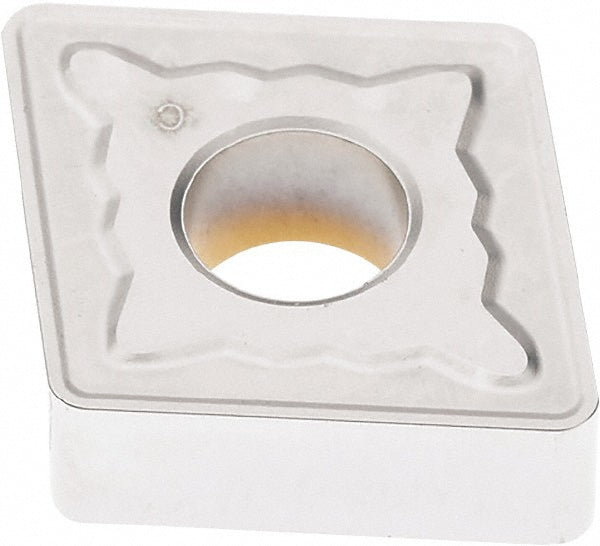

CNMG160616-MR7 Carbide Insert, Grade TK1501, TiCN - Seco 03062789

Seco

CNMG160616-MR7 Carbide Insert, Grade TK1501, TiCN - Seco 03062789

MFR# 03062789ISO/ANSI# CNMG160616Series CNMG-MR7

$27.45List $35.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03062789 is a CNMG160616-MR7 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeCNMG544
Ansi size code544
Chip breakerMR7
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG544-MR7
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code544
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160616-MR7
Iso insert codeCNMG160616
Iso size code160616
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number03062789
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.5709
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
