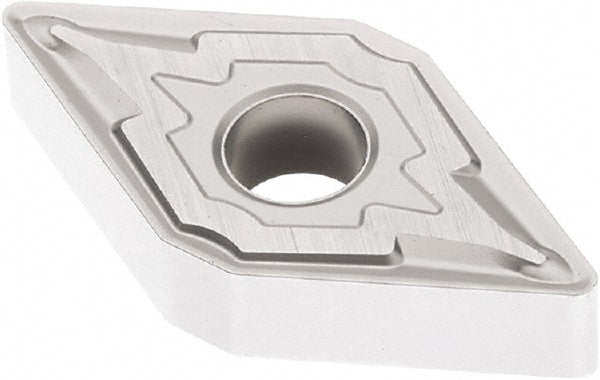

DNMG150404-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062791

Seco

DNMG150404-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062791

MFR# 03062791ISO/ANSI# DNMG150404Series DNMG-M3

$24.08List $30.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03062791 is a DNMG150404-M3 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeDNMG431
Ansi size code431
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle55
Industry standard numberDNMG431-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404-M3
Iso insert codeDNMG150404
Iso size code150404
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number03062791
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.5945
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
