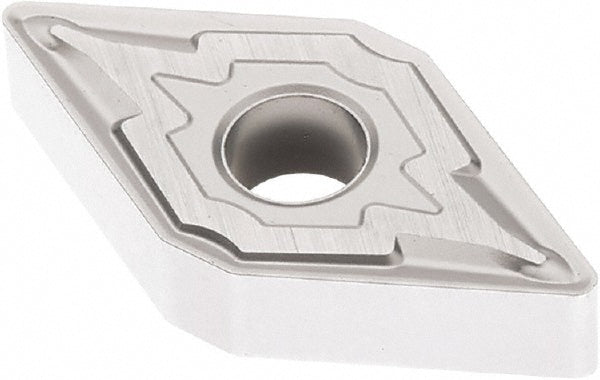

DNMG150408-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062792

Seco

DNMG150408-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062792

MFR# 03062792ISO/ANSI# DNMG150408Series DNMG-M3

$24.08List $30.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03062792 is a DNMG150408-M3 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle55
Industry standard numberDNMG432-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-M3
Iso insert codeDNMG150408
Iso size code150408
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number03062792
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
