Seco

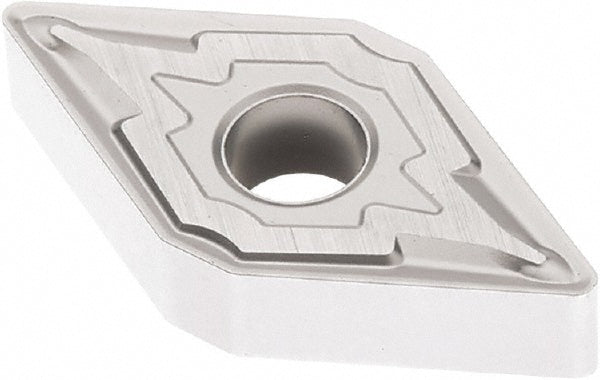

DNMG150412-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062794
MFR# 03062794ISO/ANSI# DNMG433-M3Series DNMG-M3
$24.08List $30.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062794 is a DNMG150412-M3 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG433-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412-M3
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number03062794
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.5630
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
