Seco

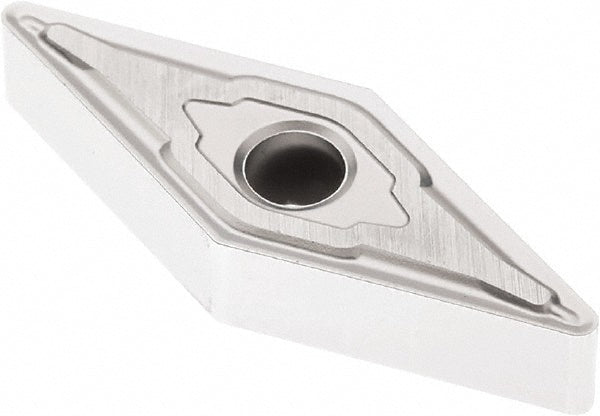

VNMG160404-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062816
MFR# 03062816ISO/ANSI# VNMG160404Series VNMG-M3
$42.60List $53.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062816 is a VNMG160404-M3 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeVNMG331
Ansi size code331
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMG331-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404-M3
Iso insert codeVNMG160404
Iso size code160404
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number03062816
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
