Seco

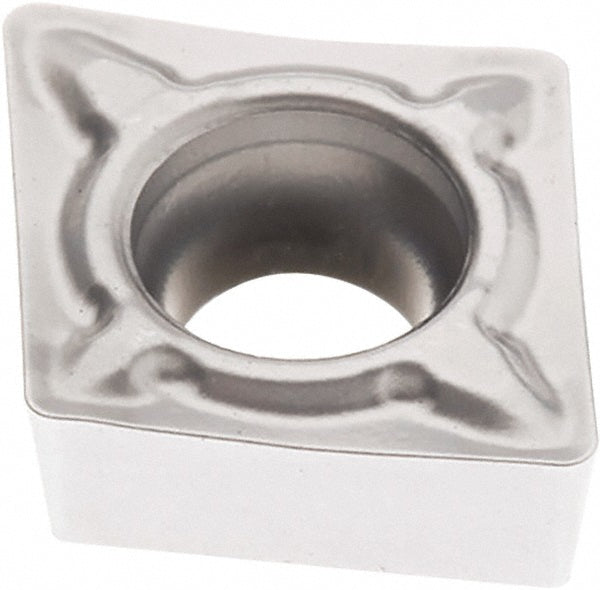

CCMT060204-F1 Carbide Insert, Grade TK0501, TiCN - Seco 03062941
MFR# 03062941ISO/ANSI# CCMT21.51-F1Series CCMT-F1
$11.88List $15.23
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTK0501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062941 is a CCMT060204-F1 carbide indexable insert, grade TK0501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204-F1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number03062941
Manufacturer gradeTK0501
Material gradeK05; K10; K15
Maximum depth of cut0.2362
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
