Seco

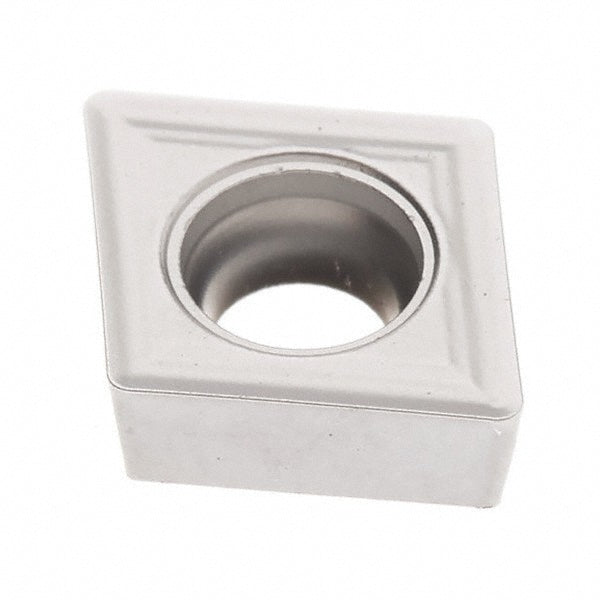

CCMT060208-M3 Carbide Insert, Grade TK1501, TiCN - Seco 03062951
MFR# 03062951ISO/ANSI# CCMT21.52-M3Series CCMT-M3
$11.88List $15.23
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03062951 is a CCMT060208-M3 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.52-M3
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208-M3
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number03062951
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.2205
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
