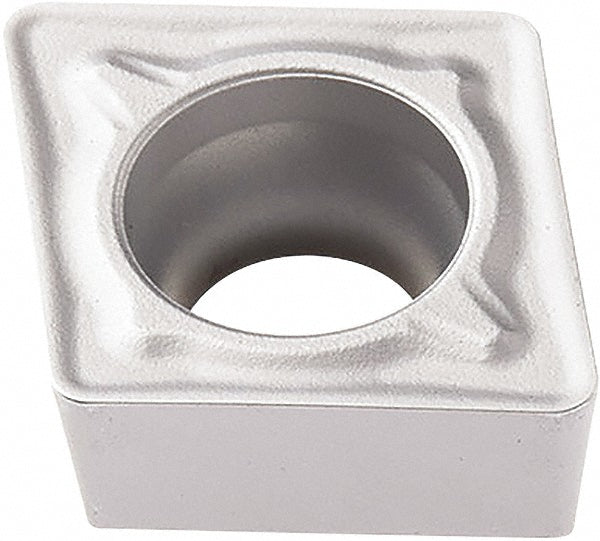

CCMT120408-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03063859

Seco

CCMT120408-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03063859

MFR# 03063859ISO/ANSI# CCMT432-M5Series CCMT-M5

$19.28List $24.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03063859 is a CCMT120408-M5 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Chip breakerM5
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2205
Included angle80
Industry standard numberCCMT432-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408-M5
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03063859
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
