Seco

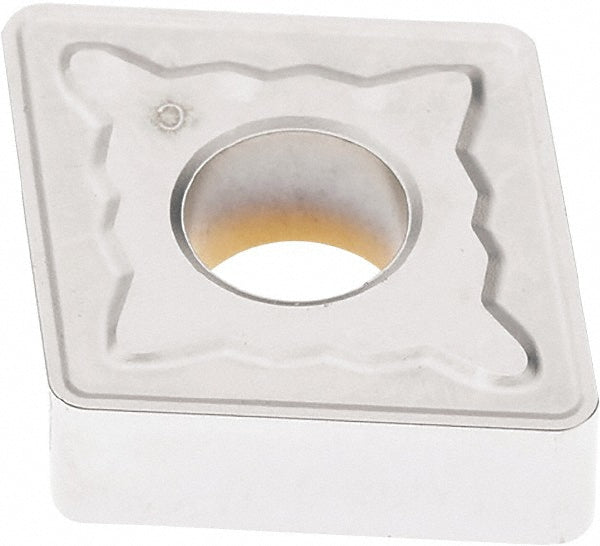

CNMG160612-MR7 Carbide Insert, Grade TK1501, TiCN - Seco 03064016
MFR# 03064016ISO/ANSI# CNMG543-MR7Series CNMG-MR7
$30.15List $38.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03064016 is a CNMG160612-MR7 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG543-MR7
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6339
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612-MR7
Lead angle80degree
Length range0.6000 - 0.6500
Manufacturers catalog number03064016
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.5866
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
