Seco

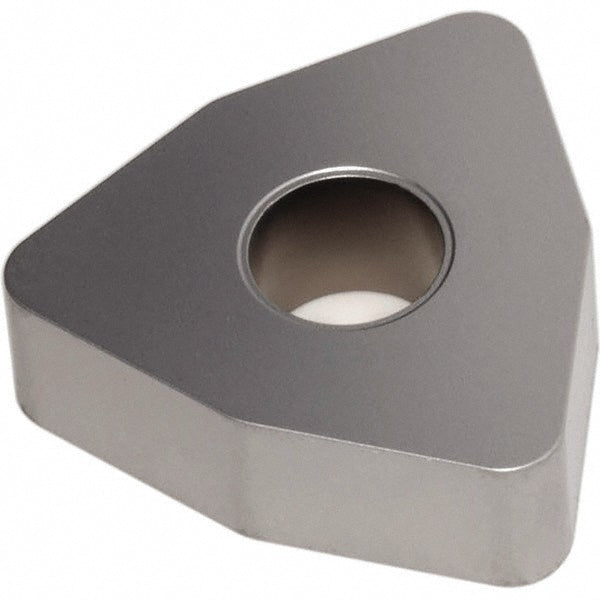

WNMA080412 Carbide Insert, Grade TK0501, TiCN - Seco 03064403
MFR# 03064403ISO/ANSI# WNMA433Series WNMA-Flat Top
$21.05List $27.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTK0501
MaterialCarbide
CoatingTiCN
Description
The Seco 03064403 is a WNMA080412 carbide indexable insert, grade TK0501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMA433
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMA
Insert thickness in3/16
Iso codeWNMA080412
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number03064403
Manufacturer gradeTK0501
Material gradeK05; K10; K15
Maximum depth of cut0.2953
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
