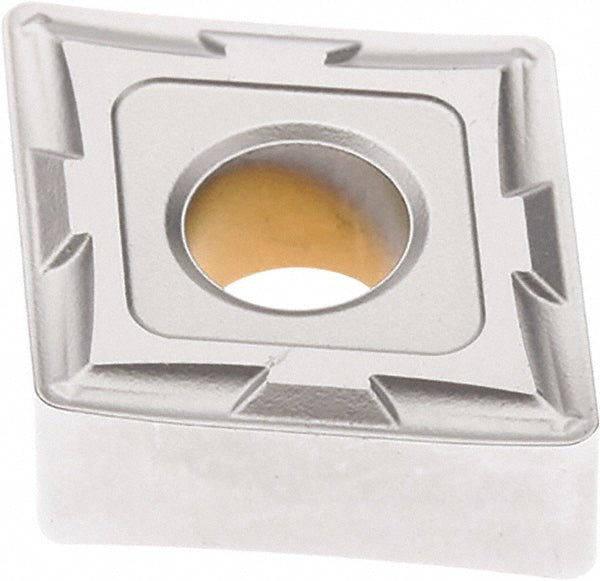

CNMG120404-MF2 Carbide Insert, Grade TK1501, TiCN - Seco 03064476

Seco

CNMG120404-MF2 Carbide Insert, Grade TK1501, TiCN - Seco 03064476

MFR# 03064476ISO/ANSI# CNMG120404Series CNMG-MF2

$19.12List $24.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03064476 is a CNMG120404-MF2 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeCNMG431
Ansi size code431
Chip breakerMF2
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNMG431-MF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-MF2
Iso insert codeCNMG120404
Iso size code120404
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03064476
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.4921
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
