CNMG160608-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03064486

Seco

CNMG160608-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03064486

MFR# 03064486ISO/ANSI# CNMG160608Series CNMG-M5

$30.15List $38.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

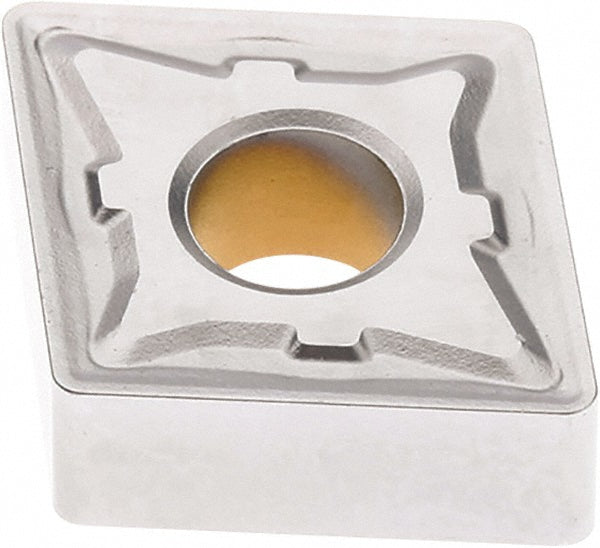

The Seco 03064486 is a CNMG160608-M5 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeCNMG542
Ansi size code542
Chip breakerM5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG542-M5
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608-M5
Iso insert codeCNMG160608
Iso size code160608
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number03064486
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.6024
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
