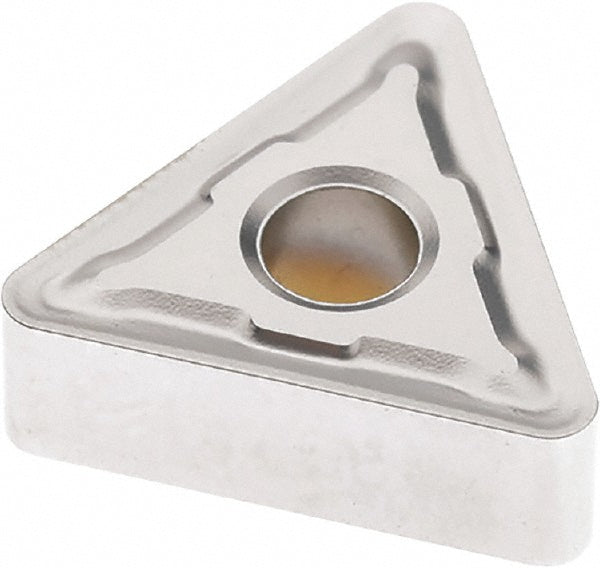

TNMG160408-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03064500

Seco

TNMG160408-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03064500

MFR# 03064500ISO/ANSI# TNMG160408Series TNMG-M5

$15.24List $19.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03064500 is a TNMG160408-M5 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeTNMG332
Ansi size code332
Chip breakerM5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.1500
Included angle60
Industry standard numberTNMG332-M5
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160408-M5
Iso insert codeTNMG160408
Iso size code160408
Lead angle60
Length range0.6000 - 0.6500
Manufacturers catalog number03064500
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.5709
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
